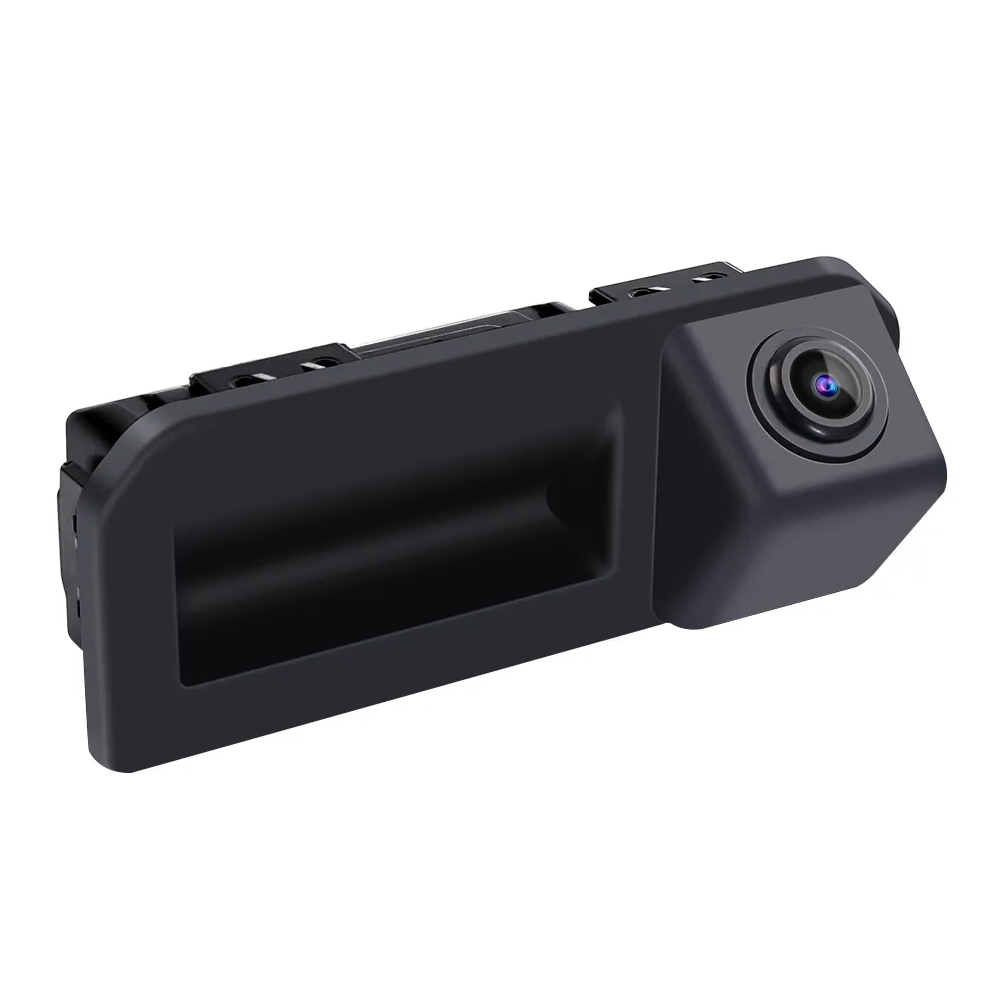

Reverse Camera for VW/Octavia/Tiguan/Audi with Dynamic Trajectory Parking Waterproof
>>>This is a cutting-edge product designed for Volkswagen, Skoda, and Audi systems that are built on the MQB Platform (new model) or PQ Platform (old model) from 2016 onwards.
（Pls note that It works for original car screen, not for any after-market car radio.）
>>>In terms of its benefits, the main selling point of this product is its compatibility with a range of Volkswagen, Skoda, and Audi models.
The built-in delay and CANBUS compatibility ensure reliable performance, while the availability of various camera options caters to diverse customer needs.
Furthermore, the product’s high-quality image matches that of the original monitor, ensuring a seamless driving experience.
More Features of OEM Screen Rear Veiw Camera:
1.Compared to mainstream factory cameras, ISUDAR offers a cheaper and guaranteed quality option.
2.It’s easy to install and requires no CANBUS or decoding – simply plug and play!
3.It perfectly matches the original head unit and doesn’t alter the car’s appearance or functions.
4.It displays dynamic trajectory lines based on the steering wheel angle, helping drivers adjust their reverse route and enhance safety and convenience.
5.With a fish-eye lens, night vision is also clear and the 170° wide-angle provides great visibility.
The lens of the camera comes with a fish-eye perspective as a default feature, providing a wide-angle view.
For VW/AUDI/SKODA
You can send pictures of the central control and the original car CD power cable for us to confirm.
For Audi A3 2016-2019
For Audi Q7 2017-2018
For Audi A4L 2017-2019
For Skoda Superb 2017-2018
For Skoda Octavia
For Skoda Octavia Wagen
For Volkswagen Sharan 2017-2020
For Volkswagen Passat 2016-2018
For Volkswagen Sagitar 2016-2018
For Volkswagen C-TRAK 2017-2020
For Volkswagen Lavida Plus 2018-2020
For Volkswagen Lavida 2018-2020
For Volkswagen Touareg 2018-2020
For Volkswagen Tiguan L 2017-2019
For Volkswagen Touran L 2016-2017
For Volkswagen Touran 2018-2020
For Volkswagen Teramont 2017
For Audi A5 2017-2018
For Audi Q3 2019
For Audi Q2L 2017-2018
For Audi Q5L 2017-2018
For Skoda Superb 2019
For Skoda Karoq 2017-2019
For Skoda Kamiq 2017-2019
For Skoda Kodiaq 2017-2019
For Volkswagen Bora 2019-2021
For Volkswagen Tharu 2019-2021
For Volkswagen Tayron 2019-2021
For Volkswagen Passat 2015-2021
For Volkswagen Sagitar 2019-2021
For Volkswagen T-Cross 2018-2019
For Volkswagen Jetta VS7 2018-2020
For Volkswagen Jetta VS5 2018-2020
Please note that the following models are not compatible
1.It can’t fit any car if it is before 2015.
2.It can’t fit Q3, A5, Q5 and A1 2021 new MIB car radio etc.
3.It can’t work with A3 8V Sportback MJ 2016 Europa. It works for some of 2015 models, and it may need some code jobs in certain condition.
4.It can’t work with Audi A3 2020/2021 and VW Golf 8 2020/2021.
5.It can’t work well with Q2 2017+ in some areas.
6.It can’t work well with any Audi A5 or A7. For example, it will not work when you first put R/reversing gear, it needs twice R/reversing gear operation, then it will display the reversing image well.
7.It can’t work with Touran 2015+.
8.It can’t work with some A3 2015.
9.It can’t work with A6L, A7, A8 or Q8, which is based on New MLB Platform.
10.It can’t work with any S3

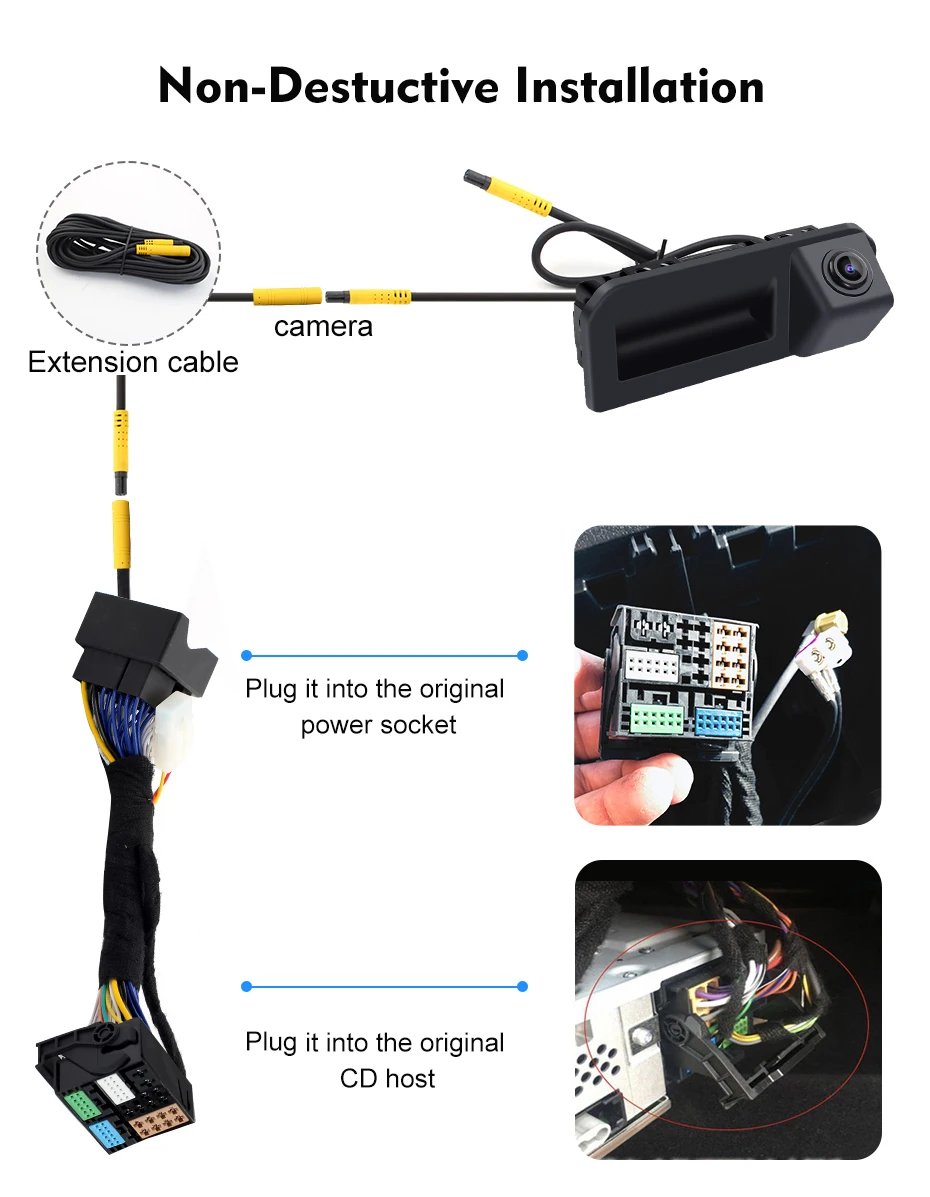

Plug and Play functionality – no decoding necessary
No need to decode for reverse car display, with no damage to the original car wiring and without affecting the standard warranty.

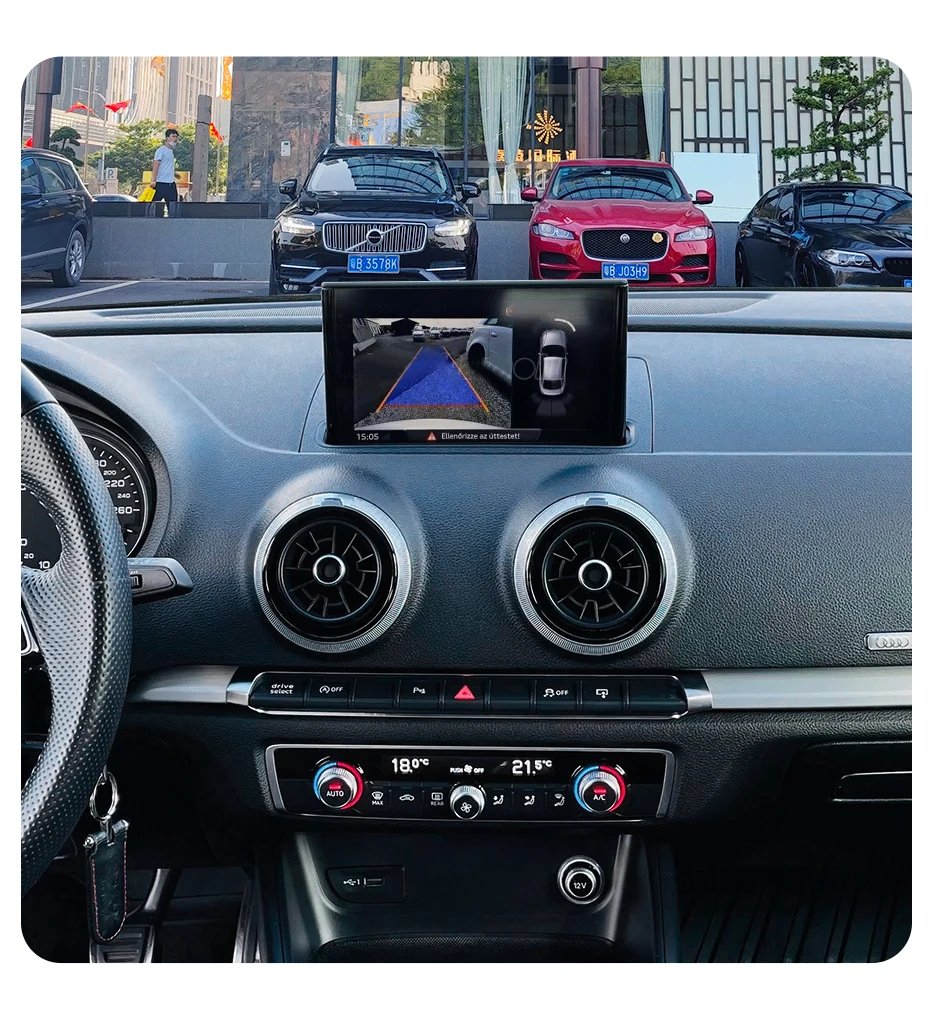

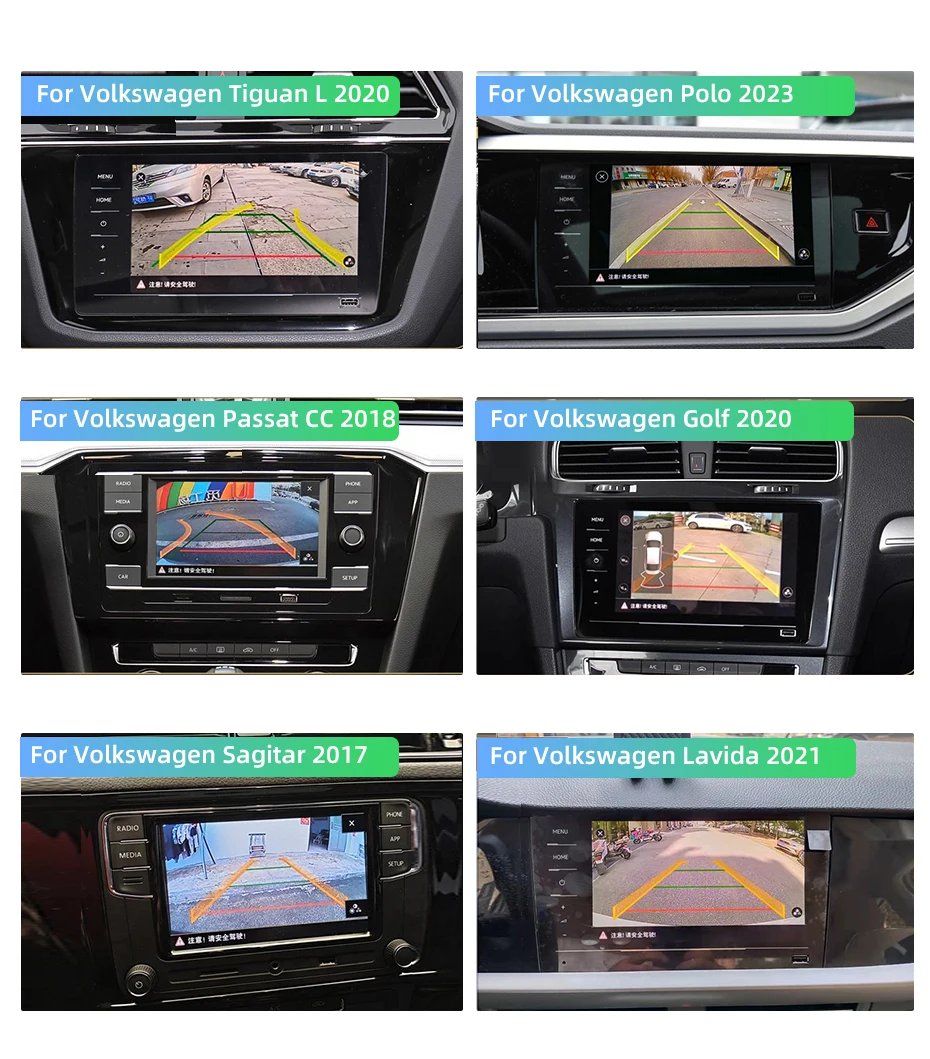

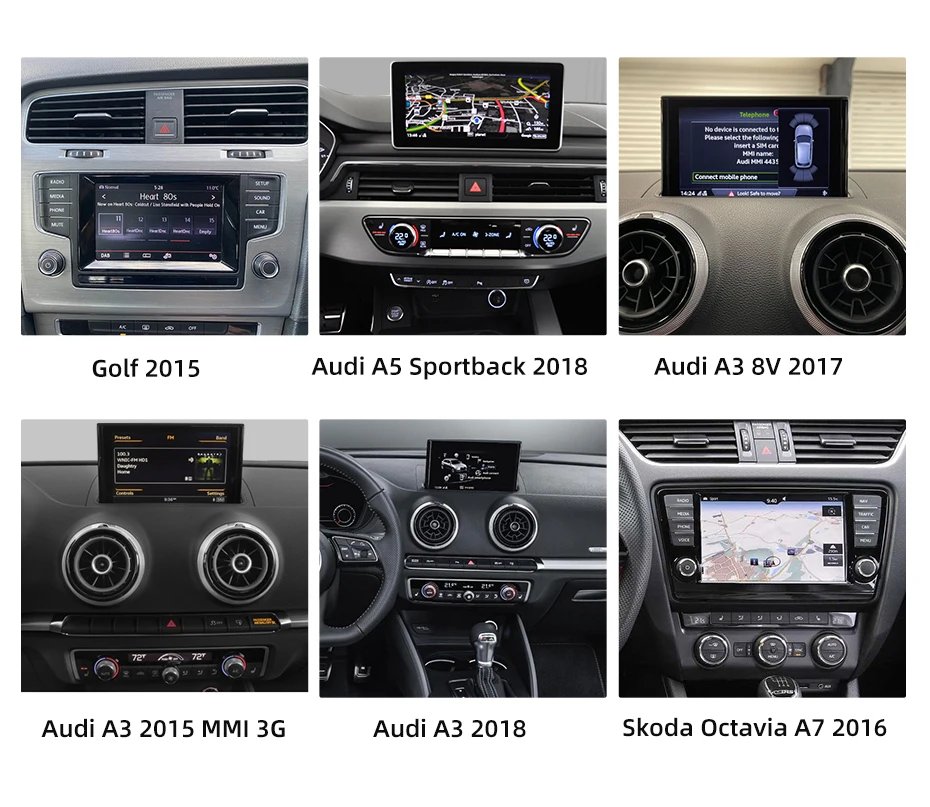

After installation-Perfectly compatible with Volkswagen/Audi original car display
The high-quality images of this camera are matched with the original display, and provide dynamic reversing tracks, ensuring a seamless driving experience.
It supports OEM harness and OEM monitor ONLY, which should be from with the car when it was producted.

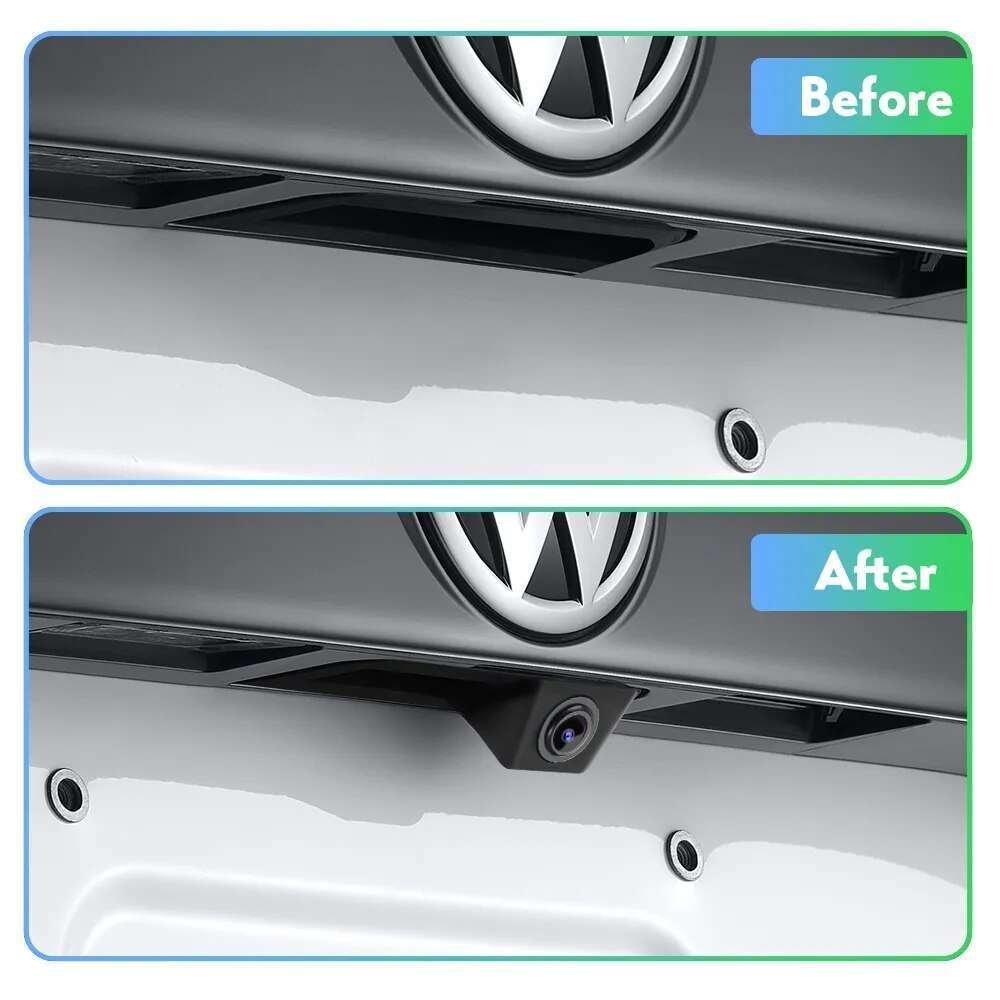

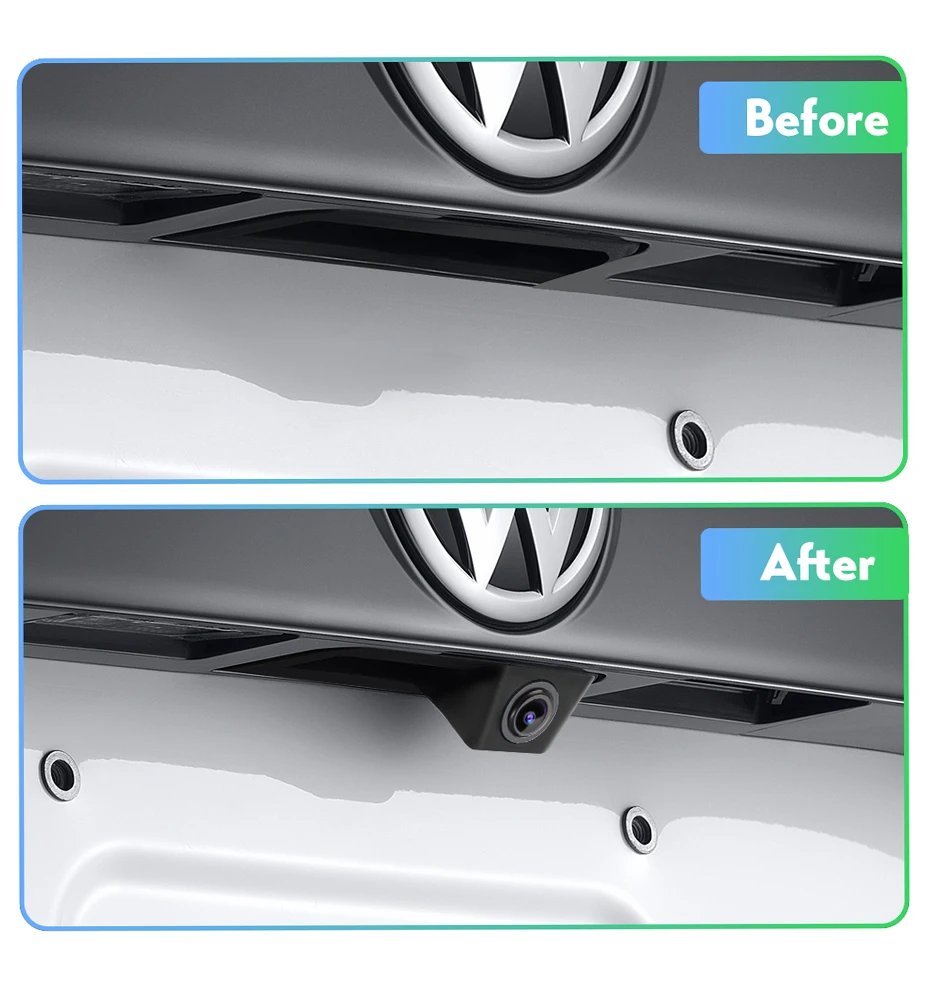

Comparison diagram of car handle position – before and after installation

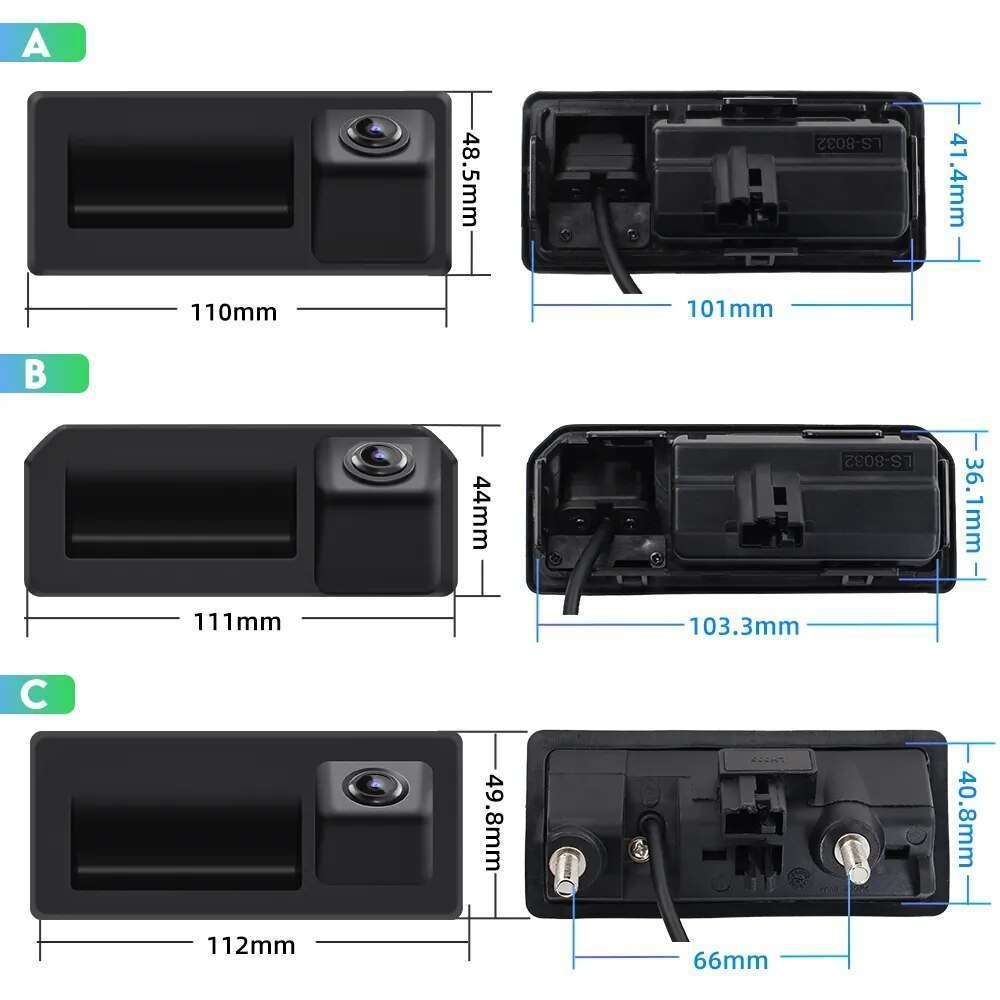

The difference between camera options A, B, C, D, E, F
You can choose the corresponding option according to the size of the car handle and CD power cord.

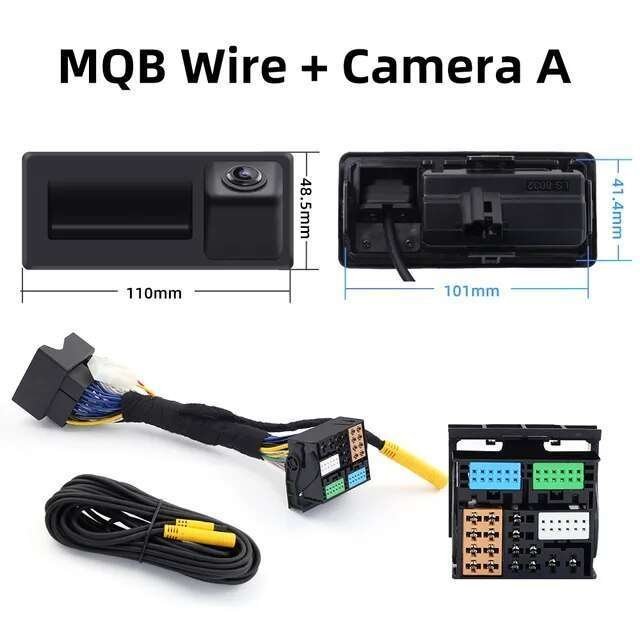

Type A MQB cable+48.5*110m is for following cars with280 Monitor MQB Platform,
such as Skoda superb 2017-2018, Octavia, Octavia Wagen etc.
Lavida PLUS, Tiguan L 2017, Teramont 2017, C-TREK 2017, Touran L 2016-2017 etc.
Audi A4L 2017-2018,Audi A3 8V 2017, Audi A3 2019 etc.

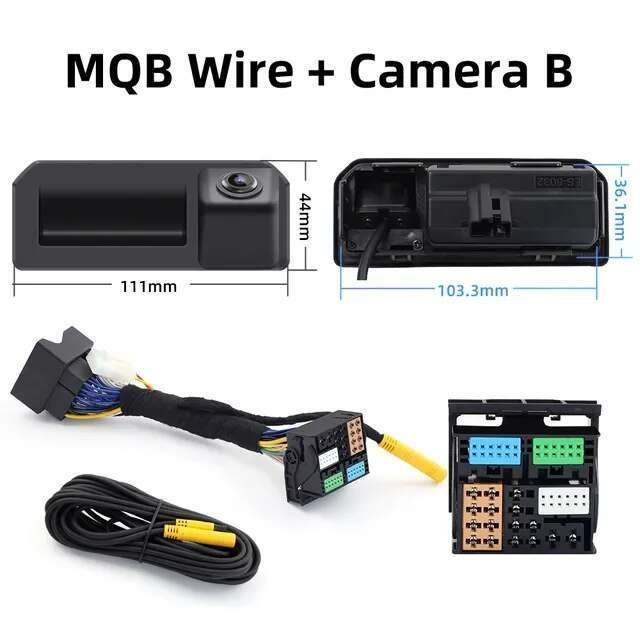

Type B MQB cable+44*111mm is for following cars with 280 Monitor MQB Platform:
Such as Bora, TAYRON, Sagitar, Tharu, T-CLRSS, Jetta VS5 etc.
Audi A3 2017 4, Audi Q5L 2019, Audi Q2L, Audi Q3, Audi A5 etc.

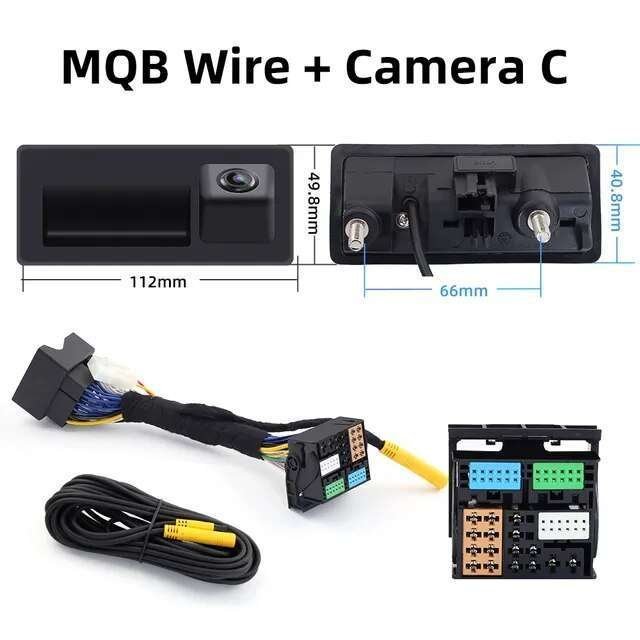

Type C MQB cable+49.8*112mm is for following cars
Audi A3 2017
Audi A5 F5 2018
Audi Q2 2019
Audi A3 8V 2015+ (MQB Platform)
Audi Q7 2017 2019 etc.

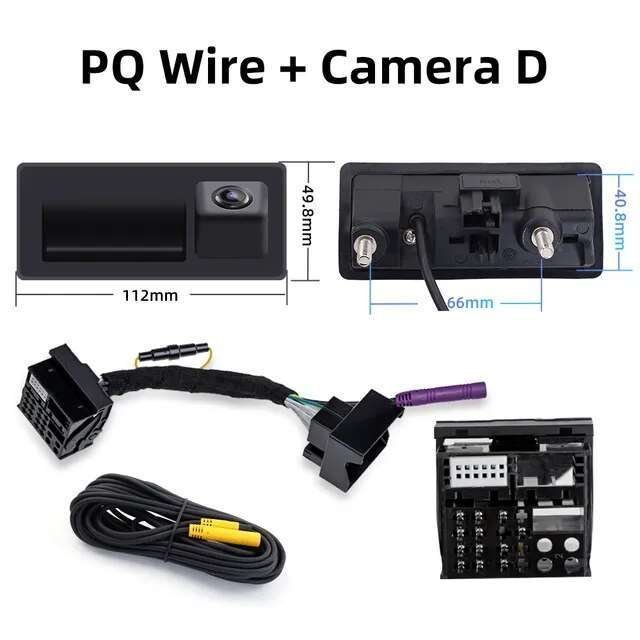

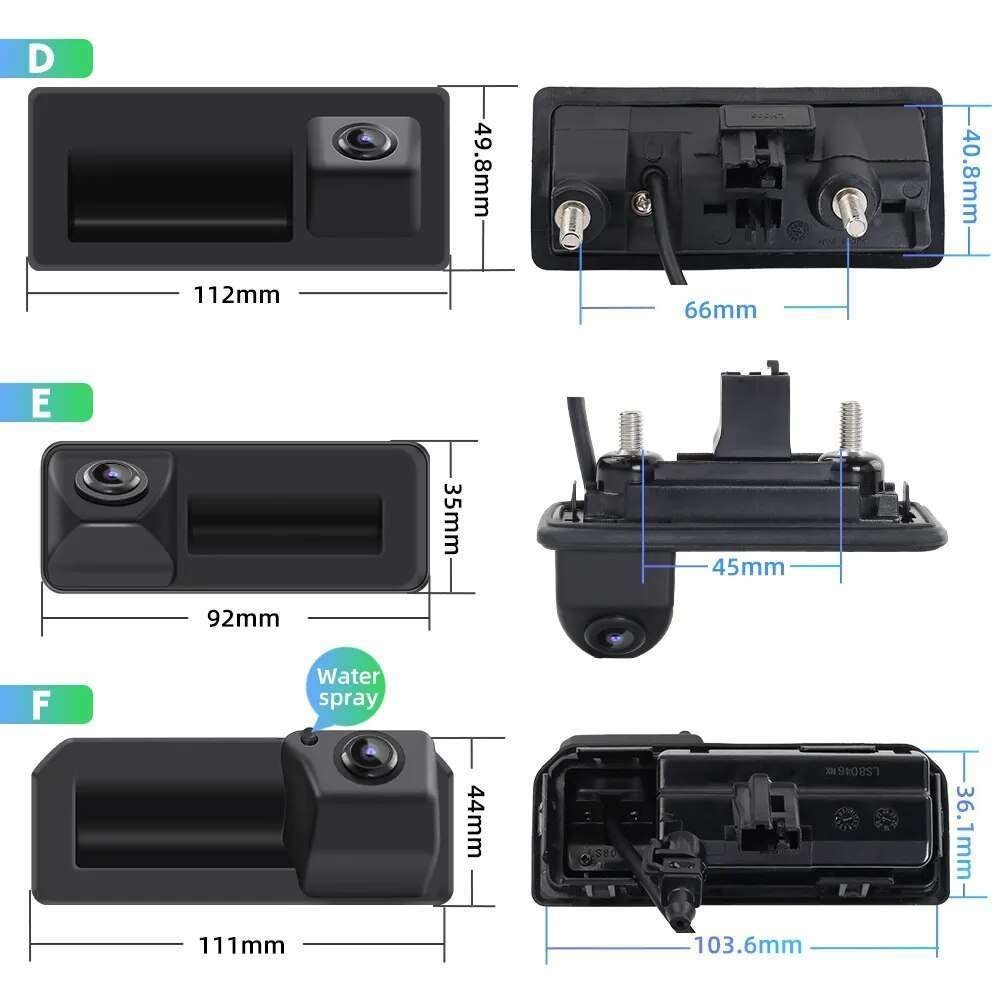

Type D PQ cable+49.8*112mm is for following cars,187B Monitor PQ Platform
Such as Old Sagitar, Old Passat etc.

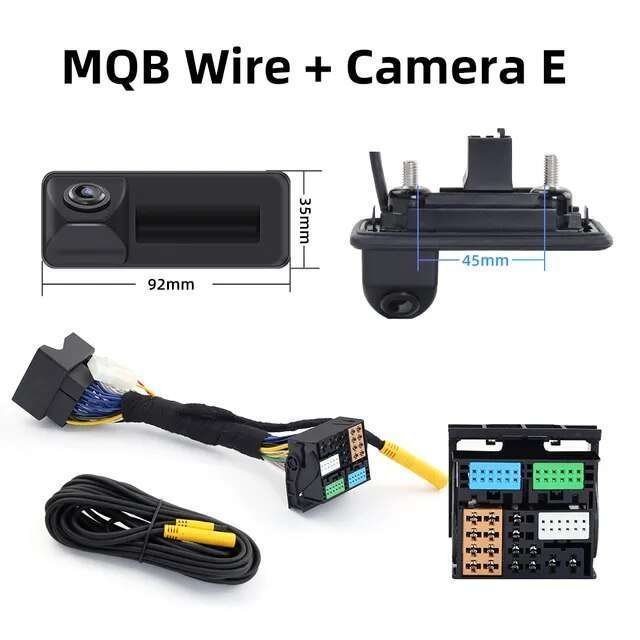

Type E MQB cable+92*35mm is for following cars
Some of Skoda in Europe 2017+

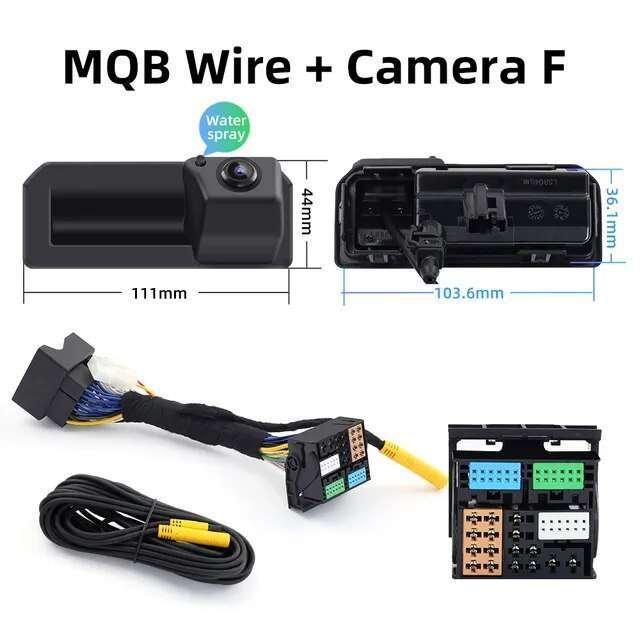

Type F MQB cable +44*111mm(Original Car Water Spray Function) is for following cars (Original Car Water Spray Function), its size is same as camera B
Audi Q2 2017 2018, Q3 2019
Skoda Kodiaq 2017 2018,Karoq 2018
Some of Volkswagen 2019+

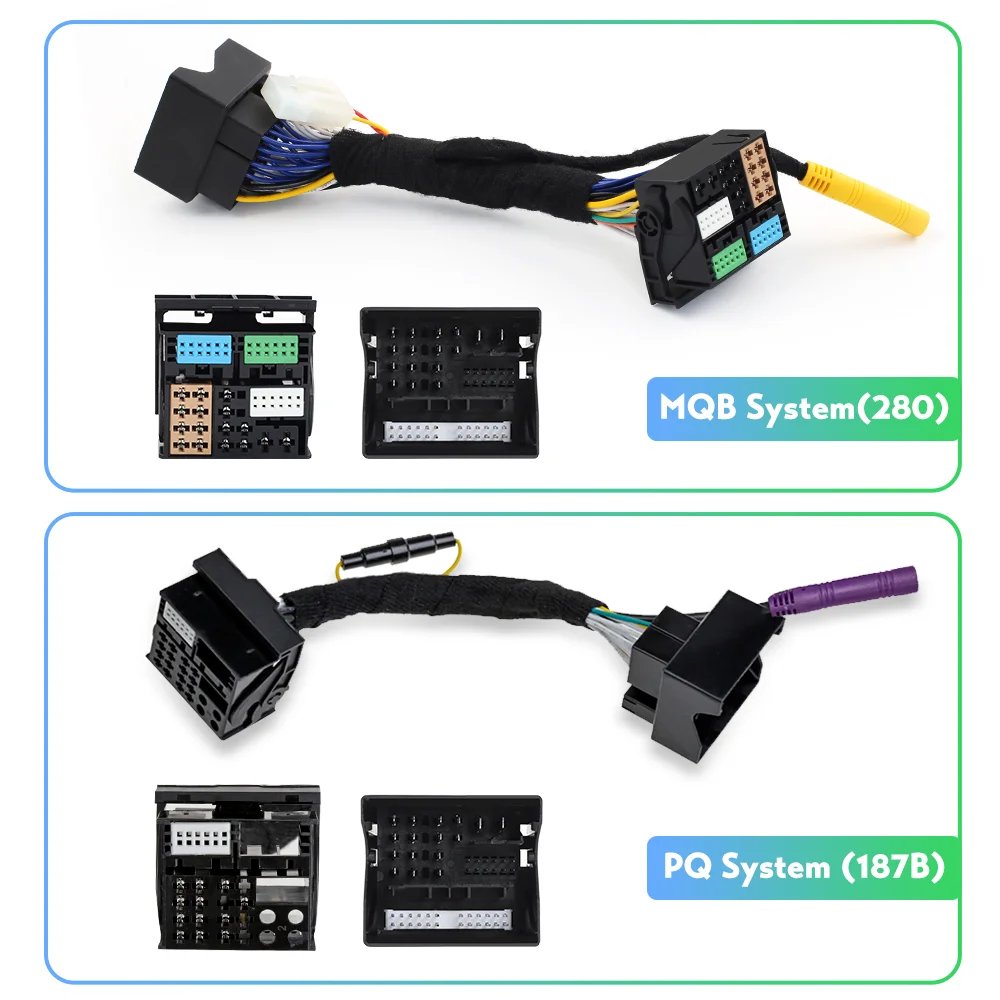

For 280 Monitor MQB platform
For 187 Monitor PQ platform, such as old Sagitar, old Passat..

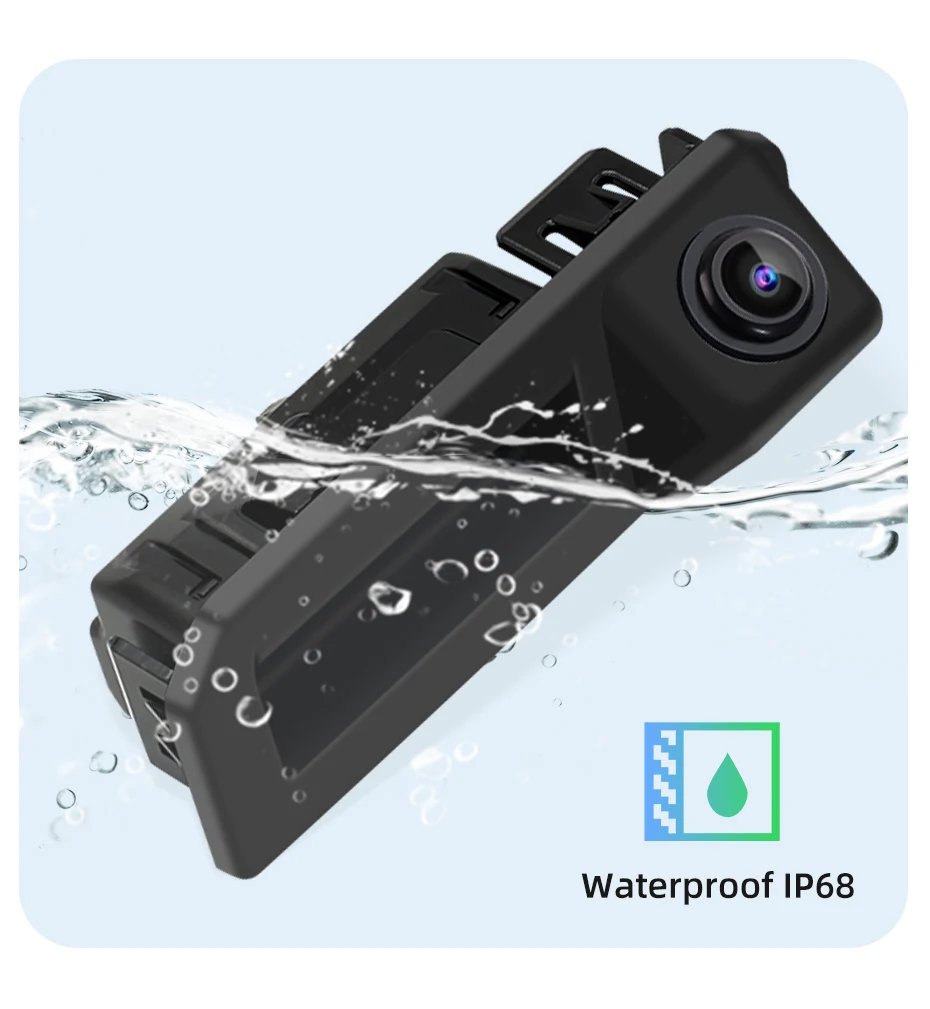

Having high waterproof performance IP68
Specifications:
Power supply :DC 12V Waterproof grade IP67 / 68
Pixels: 656(H) * 492(V)
Operating temperature -20 ℃ ~ + 75 ℃, RH95% MAX
Storage temperature -40 ° C to 85 ° C, RH 95% MAX
TV system NTSC
Light perception area of 3.584mm * 2.688mm
Lens angle lens angle: Level: 135° / Diagonal 170°

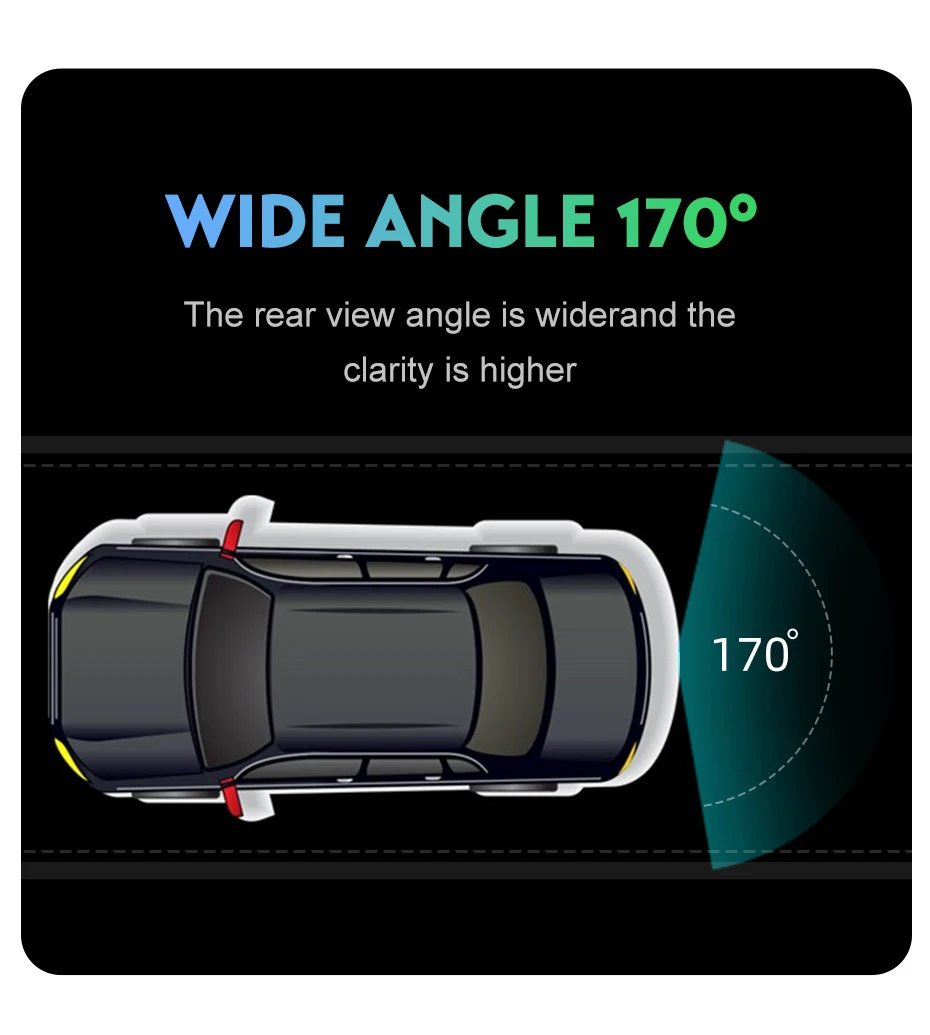

The 170° wide-angle provides great visibility
We provides higher quality and more cost-effective cameras.
The camera image display is clearer and runs more smoothly.
